5TPH Granite Stone Crusher Basalt Crusher For High Hardness Rock

Portable granite and basalt crusher for high-hardness rock

1.Product Introduction Portable Stone Crusher

The Portable Granite and Basalt Crusher is a specialized crushing solution engineered to overcome the extreme compressive strength of high-hardness volcanic and metamorphic rocks. Granite and basalt are notoriously abrasive, causing rapid wear in standard equipment; this unit addresses that challenge with reinforced V-shape crushing chambers and high-manganese alloy components. Mounted on a heavy-duty mobile chassis, it provides the mobility required to follow the quarry face while delivering the crushing force typically reserved for massive stationary installations.

2.Application Portable Stone Crusher

• Hard Rock Quarrying: Primary reduction of granite, basalt, gabbro, and diorite for high-specification construction projects.

• Railway Ballast Production: Crushing volcanic rock to the precise, angular specifications required for high-speed rail beds.

• Pavement Engineering: Manufacturing durable, wear-resistant aggregates for high-volume asphalt and concrete highways.

• Hydropower & Dam Construction: On-site processing of localized hard rock deposits for massive structural concrete pours.

3.Working Principle Portable Stone Crusher

• Deep-Chamber Compression: The unit utilizes a primary Heavy-Duty Jaw Crusher with an optimized "deep-chamber" design. This allows for a larger feed size and a sharper crushing angle, which is essential for fracturing the crystalline structure of granite.

• High-Inertia Flywheels: Dual balanced flywheels store massive kinetic energy, providing the "peak force" necessary to crush through basalt boulders without stalling the engine or motor.

• Wedge Adjustment System: Instead of manual shims, a hydraulic wedge system allows operators to change the Closed Side Setting (CSS) in seconds, controlling the output size even as the abrasive rock wears down the plates.

• Heavy-Duty Grizzly Bypass: A vibrating grizzly feeder removes undersized material and abrasive fines before they enter the chamber, reducing unnecessary wear on the jaw plates and increasing overall throughput.

4.Advantages Portable Stone Crusher

• Exceptional Wear Resistance: Equipped with 22% Manganese + Chrome alloy jaw plates, specifically formulated to handle the high silica content of granite and the toughness of basalt.

• Robust Mobilization: Features a reinforced "I-beam" chassis and heavy-duty axles or tracks, designed to support the intense weight and vibration of hard-rock crushing.

• High Reduction Ratio: Capable of reducing large ROM (Run of Mine) feed down to a manageable size in a single pass, simplifying the secondary crushing stage.

• Intelligent Overload Protection: The toggle plate acts as a mechanical fuse, and the hydraulic system provides "tramp release" to prevent structural damage from uncrushable materials like drill bits or loader teeth.

• Modular Power Plant: Available with a "Dual Power" option (Diesel-Electric), allowing the unit to run on its own engine in remote quarries or switch to local grid power to reduce operating costs.

5tph granite stone crusher

5tph basalt crusher

high hardness basalt crusher

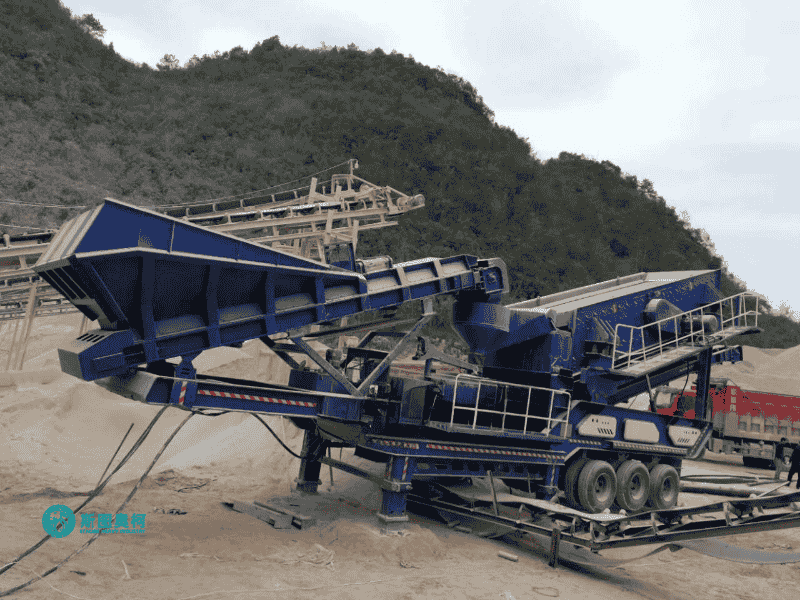

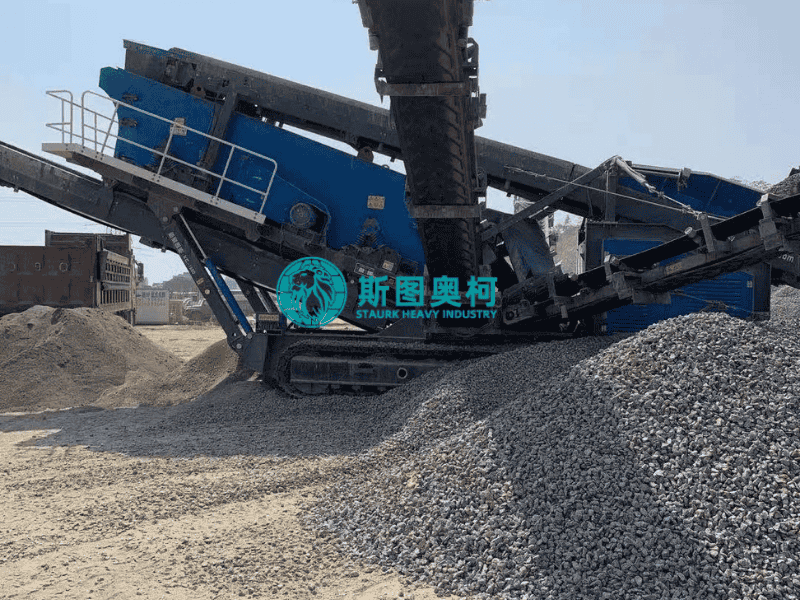

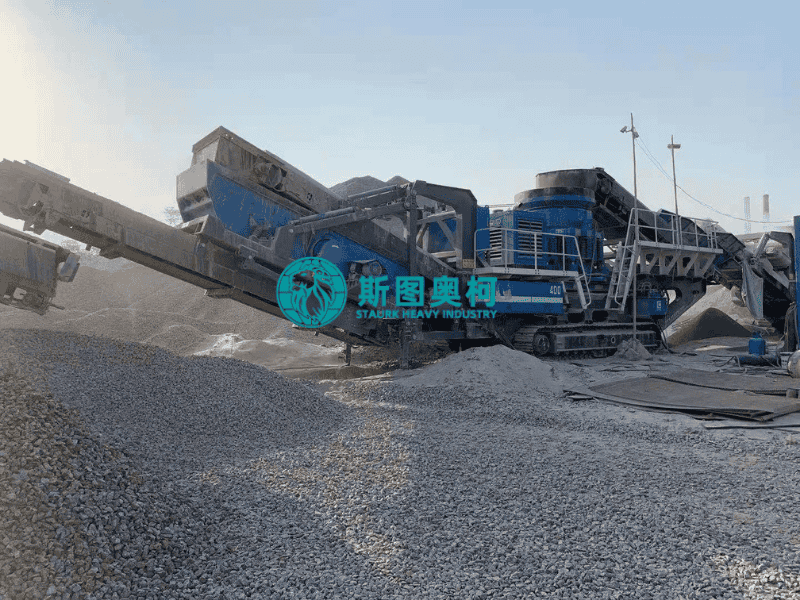

5TPH Granite Stone Crusher Basalt Crusher For High Hardness Rock Images
